Double Panic Bars


From

£114.00 As Standard

Delivery starting @ £12.00

Lead Time: 1-2 Working Days

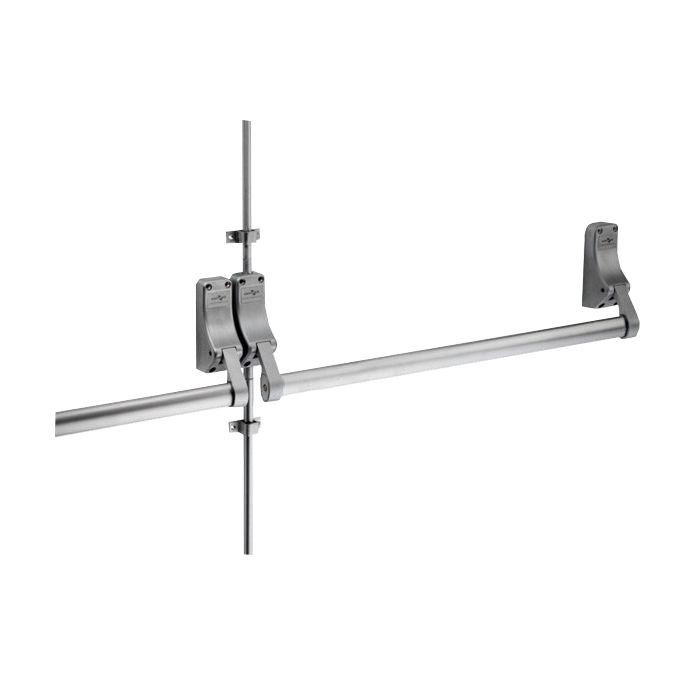

Exidor double doorset for rebated double doors featuring a single point panic latch and two point panic bolt.

Features and Benefits

  • 296 latch unit for use on active leaf and a 294 bolt unit which secures inactive leaf
  • Push bar design easily cut to size to suit different door widths
  • Can work in conjunction with a range of outside access devices (302EC and 322EC available through our website)
  • Supplied with timber or steel door keeps and fixings
  • Economic and versatile solution for many public area buildings

Specification

  • Activation - Push bar
  • Door type -
    • Rebated double doorset – latch on active leaf and bolt on inactive leaf
  • Projection - 98mm from door face
  • No. of locking points 3
  • Bolt style - Active leaf: Single latch & Inactive leaf: Shoot bolts
  • Durability - 200,000 cycles
  • Max door width 1220mm, bar can be cut to size
  • Max door height 2440mm
  • Max door mass Up to 200kg
  • Handing - Universal
  • Finish - Silver

Testing and certification

  • UKCA / CE marked - Yes
  • Certified in compliance with EN 1125
  • Suitable for fire doors Timber FD30/FD60/FD90/FD120 & Metal FD120/FD240
  • Certifire approval - Yes
  • Manufacturers guarantee - 10 Years
£114.00

FAQs



All our cylinders for single doors are stored in the top of the door frame in a white fabric bag. For double doors the cylinder and key set can be found in one of the boxes of handles supplied.

All our frames come supplied with side channels that are fitted around the outside of the frame. The side channels expand by winding out the fixing bolts which in turn push the side channels outwards allowing you to expand the frame between the two measurements.

All our doors are designed to open outwards which makes them more secure and weather-proof. If you require the door to open inwards you are required to install the frame the opposite way, this does have an effect on the security and weather-proof aspect of the door. We would recommend adding a rain drip to any inward opening doors being installed externally helping to prevent water ingress.

A blanking plate is a sheet of steel used to cover the handle fixing locations that are pre-cut into our multi-point locking door blades. These are only necessary if you don’t require a lever handle to be fitted, we offer these with or without key access.

Stock items are normally dispatched within 5 working days.

None stock custom orders including fire exits are normally dispatched within 4 to 5 weeks

Powder coated orders are normally dispatched within 5 to 6 weeks.

Orders are normally delivered within 24 to 48 hours upon being dispatched and are normally delivered between Monday and Friday between the hours of 09:00 and 17:00.

We do offer collections, this is currently not available online. You would need to contact the office on 01260 295 996 or send an email to [email protected] with your requirements so we can forward a pro forma.
