Exidor 322EC Lever Operated OAD with Euro Cylinder


From

£50.40 As Standard

Delivery starting @ £12.00

Lead Time: 1-2 Working Days

Exidor easy and convenient lever outside access device for use with 200 series and 300 series hardware.

Features and Benefits

  • For gaining entry through an escape door
  • Lever design is simple and easy to open
  • The lever dimensions help to meet the requirements of BS 8300 for a more inclusive building design
  • For use with 200 and 300 series hardware
  • Bolt through fixings make it suitable for steel or timber doors up to 65mm thick
  • Unit supplied with a euro profile cylinder
    • Comes supplied with 3 keys
  • Locking the cylinder prevents access into the building but will not prevent escape out of the building
  • Suitable for access points such as staff entries

Specification

  • Activation - Lever handle
  • Door type -
    • Single doorset
    • Rebated double doorset - active leaf
    • Plain meeting stile double doorset - either leaf
  • Projection - 88mm from door face
  • Max door width 1220mm
  • Max door height 2440mm
  • Max door mass Up to 200kg
  • Operation -
    • Pushing the lever down retracts the internal bolts/latches
    • Releasing the lever returns the internal bolts/latches to the rest position
  • Handing - Universal
  • Finish - Silver

Testing and certification

  • UKCA / CE marked - As an approved accessory to the internal hardware
  • Certified in compliance with - Certified 200/300 series accessory as part of EN 1125 and EN 179
  • Suitable for fire doors Timber FD30/FD60 & Metal FD120/FD240
  • Certifire approval - Yes - as an accessory to the internal hardware
  • Manufacturers guarantee - 10 Years
£50.40

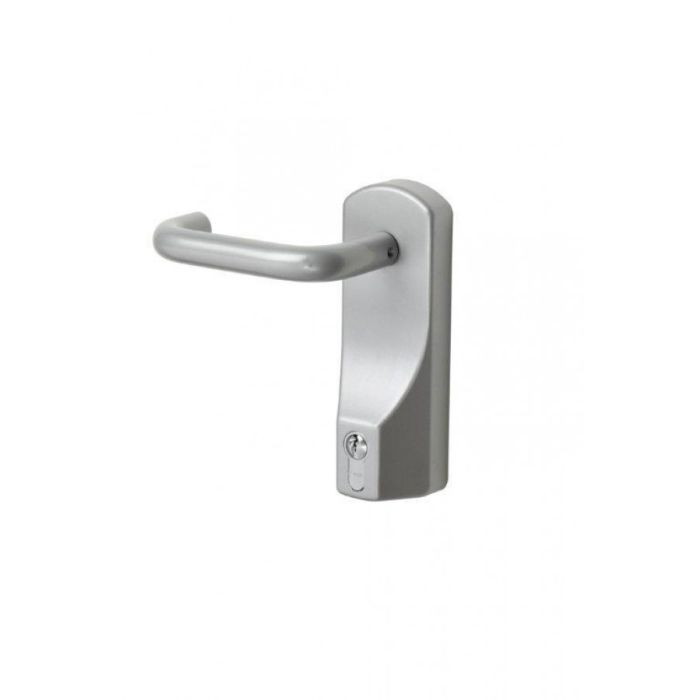

main product photo

FAQs

  • In stock single doors: The cylinder and key set is found in the top of the frame.
  • Double doors: The cylinder is placed in one of the handle boxes.
  • Fire exits: The keys are taped to the door or around the panic bar.

All our frames come supplied with side channels that are fitted around the outside of the frame. The side channels expand by winding out the fixing bolts which in turn push the side channels outwards allowing you to expand the frame between the two measurements.

All our doors are designed to open outwards which makes them more secure and weather-proof. If you require the door to open inwards you are required to install the frame the opposite way, this does have an effect on the security and weather-proof aspect of the door. We would recommend adding a rain drip to any inward opening doors being installed externally helping to prevent water ingress.

A blanking plate is a sheet of steel used to cover the handle fixing locations that are pre-cut into our multi-point locking door blades. These are only necessary if you don’t require a lever handle to be fitted, we offer these with or without key access.

  • For stock items: The lead time is 1-2 working days for dispatch.
  • Customised orders: Generally between 2 to 3 weeks.
  • Powder coated orders: Generally around 3 weeks.
  • Orders with infill panels: Could take up to 4 weeks.

Once the order is dispatched deliveries are normally the next working day between 08:00 and 17:30.

We do offer collections; this is currently not available online. You would need to contact the office at 01260 460 310 or send an email to [email protected] with your requirements so we can forward a pro forma.
