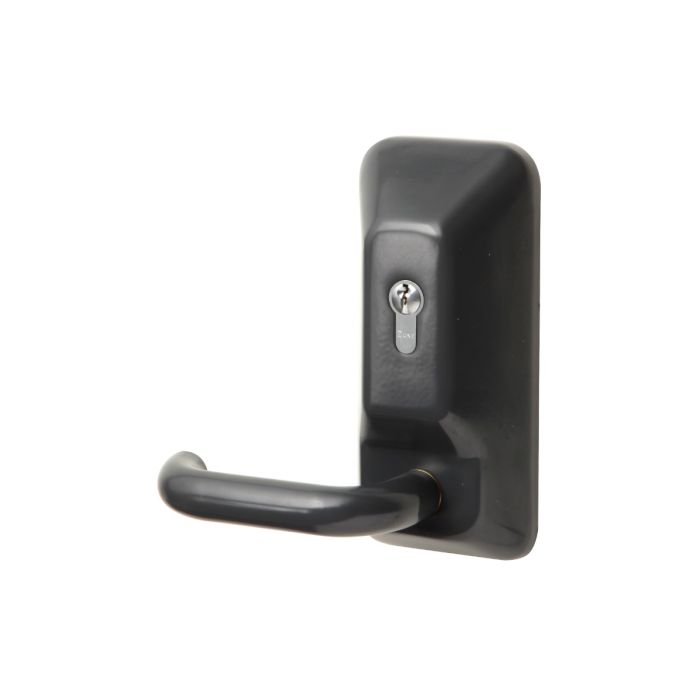

Exidor 710EC - External Lever Handle


From

£306.00 As Standard

Delivery starting @ £12.00

Lead Time: 1-3 Working Days

The Exidor 710 is supplied either with or without cylinder, and has the advantage that a high security master keyed 45mm half Euro profile cylinder can be used.

Suitable for use with the Exidor 700 series, this OAD is manufactured from stainless steel which helps prevent force and drill attack, and incorporates cylinder protection to prevent manipulation.

Features and Benefits

  • Manufactured from stainless steel to help prevent force and drill attack
  • Incorporates cylinder protection to prevent manipulation
  • Lever design helps meet requirements of BS 8300 and Approved Document M, giving barrier free access
  • Surface mounted using concealed machine screws on the external face of doors up to 45mm thick
  • Unit supplied with a euro profile cylinder
    • Comes supplied with 3 keys
  • Locking the cylinder prevents access into the building but will not prevent escape out of the building
  • Suitable for busy additional entry points

Specification

  • Activation - Lever Handle
  • Door type -
    • Single doorset
    • Rebated double doorset - inactive leaf
    • Plain meeting stile double doorset - either leaf
  • Projection - 89mm from door face
  • Max door width 1220mm
  • Max door height 2440mm
  • Max door mass Up to 200kg
  • Handing - Universal
  • Finish - RAL 7016

Testing and certification

  • UKCA / CE marked - As an approved accessory to the internal hardware
  • Certified in compliance with Certified 700 series accessory as part of EN 1125 and EN 179
  • Suitable for fire doors Timber FD30/FD60 & Metal FD120/FD240
  • Certifire approval - Yes – as an accessory to rest of range
  • Manufacturers guarantee - 10 Years
  • Tested to LPS 1175 SR2 grade
£306.00

FAQs



All our cylinders for single doors are stored in the top of the door frame in a white fabric bag. For double doors the cylinder and key set can be found in one of the boxes of handles supplied.

All our frames come supplied with side channels that are fitted around the outside of the frame. The side channels expand by winding out the fixing bolts which in turn push the side channels outwards allowing you to expand the frame between the two measurements.

All our doors are designed to open outwards which makes them more secure and weather-proof. If you require the door to open inwards you are required to install the frame the opposite way, this does have an effect on the security and weather-proof aspect of the door. We would recommend adding a rain drip to any inward opening doors being installed externally helping to prevent water ingress.

A blanking plate is a sheet of steel used to cover the handle fixing locations that are pre-cut into our multi-point locking door blades. These are only necessary if you don’t require a lever handle to be fitted, we offer these with or without key access.

Stock items are normally dispatched within 5 working days.

None stock custom orders including fire exits are normally dispatched within 4 to 5 weeks

Powder coated orders are normally dispatched within 5 to 6 weeks.

Orders are normally delivered within 24 to 48 hours upon being dispatched and are normally delivered between Monday and Friday between the hours of 09:00 and 17:00.

We do offer collections, this is currently not available online. You would need to contact the office on 01260 295 996 or send an email to [email protected] with your requirements so we can forward a pro forma.
