Exidor 742BD/30 - Double Door Set


£1,176.00 As Standard

Delivery starting @ £12.00

Lead Time: 1-3 Working Days

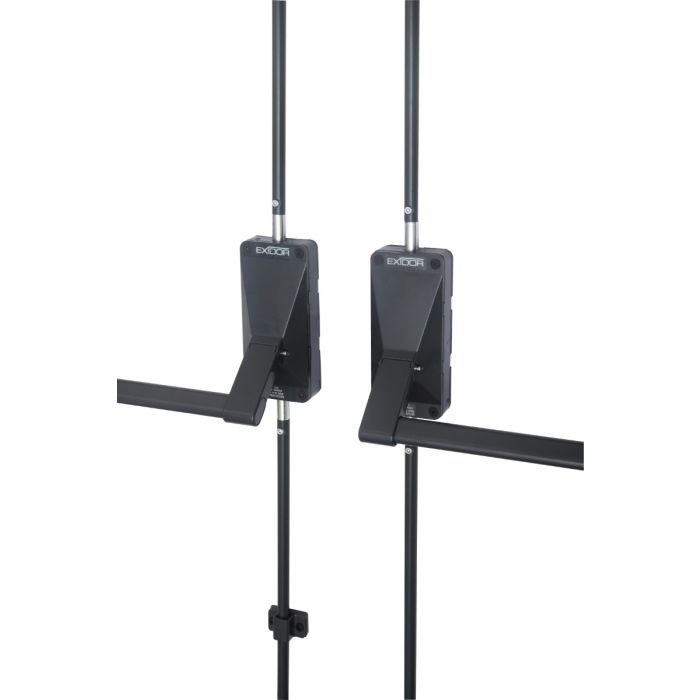

The Exidor 742BD/30 for rebated double doors is a high security complete package offering secure four point locking and incorporates the new horizontal locking mechanism. This allows the unit to be certified to EN1125:2008 and it is suitable for rebated double door applications where security is a consideration.

The main body is constructed from a mixture of steel and stainless steel with steel being used for the internal components and bolts. There is also an anti-thrust mechanism in the horizontal bolts, increasing the products resistance to attack.

Features and Benefits

  • Combines a unit with 2 horizontal shoot bolts and 702B/30 into a single set
    suitable for rebated double doors
  • Push bar design easily cut to size to suit different door widths
  • Can work in conjunction with Exidor 710EC - external lever handle (available through our website)
  • Anti-thrust bottom bolt to prevent physical attack
  • Supplied with timber or steel door keeps and fixings
  • Ideal where greater intruder resistance is required


  • Activation - Push bar
  • Door type -
    • Rebated double doorset – 2 horizontal shoot bolt unit on active leaf, bolt unit on inactive leaf
  • Projection - 133mm from door face
  • No. of locking points 4
  • Bolt style - Horizontal shoot bolts and adjustable top/bottom shoot bolts
  • Durability - 200,000 cycles
  • Max door width 1220mm, bar can be cut to size
  • Max door height 2440mm
  • Max door mass Up to 200kg
  • Handing - Universal
  • Finish - RAL 7016

Testing and certification

  • UKCA / CE marked - Yes
  • Certified in compliance with EN 1125
  • Suitable for fire doors Timber FD30/FD60 & Metal FD120/FD240
  • Certifire approval - No
  • Manufacturers guarantee - 10 Years



All our cylinders for single doors are stored in the top of the door frame in a white fabric bag. For double doors the cylinder and key set can be found in one of the boxes of handles supplied.

All our frames come supplied with side channels that are fitted around the outside of the frame. The side channels expand by winding out the fixing bolts which in turn push the side channels outwards allowing you to expand the frame between the two measurements.

All our doors are designed to open outwards which makes them more secure and weather-proof. If you require the door to open inwards you are required to install the frame the opposite way, this does have an effect on the security and weather-proof aspect of the door. We would recommend adding a rain drip to any inward opening doors being installed externally helping to prevent water ingress.

A blanking plate is a sheet of steel used to cover the handle fixing locations that are pre-cut into our multi-point locking door blades. These are only necessary if you don’t require a lever handle to be fitted, we offer these with or without key access.

Stock items are normally dispatched within 5 working days.

None stock custom orders including fire exits are normally dispatched within 4 to 5 weeks

Powder coated orders are normally dispatched within 5 to 6 weeks.

Orders are normally delivered within 24 to 48 hours upon being dispatched and are normally delivered between Monday and Friday between the hours of 09:00 and 17:00.

We do offer collections, this is currently not available online. You would need to contact the office on 01260 295 996 or send an email to [email protected] with your requirements so we can forward a pro forma.
