ASSA ABLOY Door Closer - Power Rating 3-6


From

£114.00 As Standard

Delivery starting @ £12.00

Lead Time: 1-2 Working Days
Description

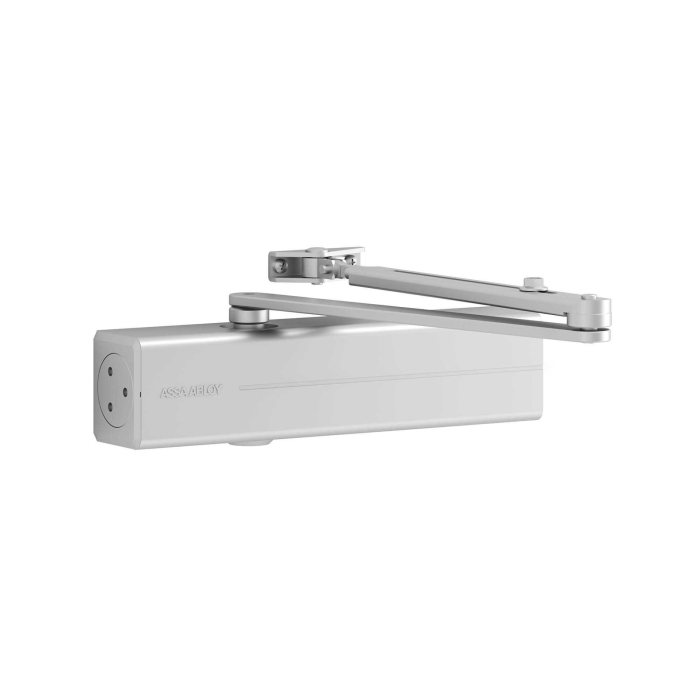

ASSA ABLOY Door Closers are ideal for almost any
structural conditions, whether they are used in public,
residential or commercial buildings or on light or heavy
doors.

Spec

  • Rack and pinion door closer with link arm L190.
  • For single action doors up to 1400 mm wide.
  • DC300A supplied complete with A154 parallel arm bracket.
  • Can be used with integrated concealed mounting plate, suitable for fire and smoke protection doors.
  • Can be used for left and righthanded doors.
  • Link arm heightadjustable up to 14mm.
  • Closing speed, latching speed and backcheck adjustable via front facing regulating valves.
  • Thermodynamic valves for consistent performance.
  • Variable adjustable closing force.
  • Opening angle up to 180º.
  • Effective backcheck and latching speed range adjustable.
  • Large range of applications.

Dimensions

  • 60(H) x 50(D) x 260(W)mm

Finish

  • Silver

Standards

  • EC Cert No 2812-CPR-AD5491
  • CE Marked
  • Suitable for fire and smoke protection doors
  • Meets BS8300
£114.00

FAQs

  • In stock single doors: The cylinder and key set is found in the top of the frame.
  • Double doors: The cylinder is placed in one of the handle boxes.
  • Fire exits: The keys are taped to the door or around the panic bar.

All our frames come supplied with side channels that are fitted around the outside of the frame. The side channels expand by winding out the fixing bolts which in turn push the side channels outwards allowing you to expand the frame between the two measurements.

All our doors are designed to open outwards which makes them more secure and weather-proof. If you require the door to open inwards you are required to install the frame the opposite way, this does have an effect on the security and weather-proof aspect of the door. We would recommend adding a rain drip to any inward opening doors being installed externally helping to prevent water ingress.

A blanking plate is a sheet of steel used to cover the handle fixing locations that are pre-cut into our multi-point locking door blades. These are only necessary if you don’t require a lever handle to be fitted, we offer these with or without key access.

  • For stock items: The lead time is 1-2 working days for dispatch.
  • Customised orders: Generally between 2 to 3 weeks.
  • Powder coated orders: Generally around 3 weeks.
  • Orders with infill panels: Could take up to 4 weeks.

Once the order is dispatched deliveries are normally the next working day between 08:00 and 17:30.

We do offer collections; this is currently not available online. You would need to contact the office at 01260 460 310 or send an email to [email protected] with your requirements so we can forward a pro forma.
