Exidor 402 and 403 Touch Bar with 2 Point Locking


From

£192.00 As Standard

Delivery starting @ £12.00

Lead Time: 1-3 Working Days

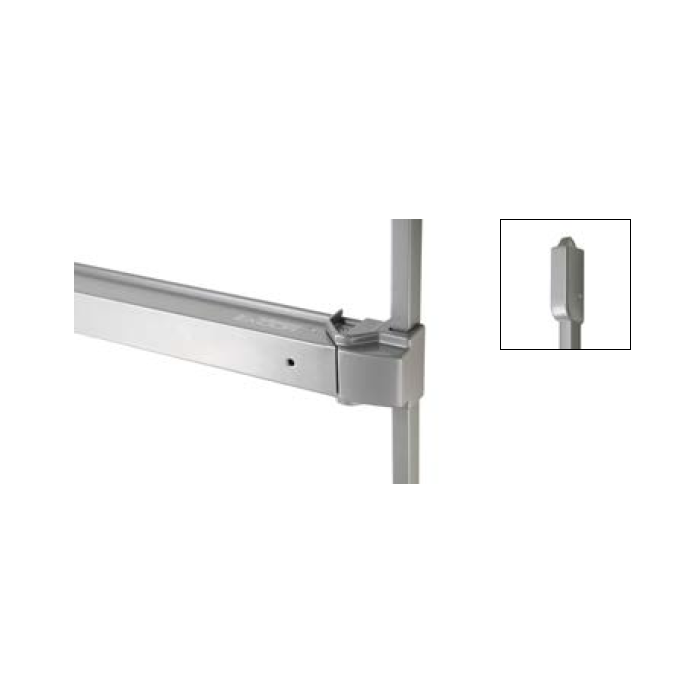

Exidor panic touch bar with two vertical Pullman latches

Features and Benefits

  • Vertical Pullman latches with two point locking for panic escape
  • Touch bar available in two standard sizes to suit doors up to 900mm or 1200mm wide
  • Range of outside access devices
  • Supplied with keeps and fixings
  • Ideal for sports halls, public access areas and front of house applications

Specification

  • Activation - Touch bar
  • Door type -
    • Single doorset
    • Rebated double doorset - inactive leaf
    • Plain meeting stile double doorset - either leaf
  • Projection - 62mm from door face
  • No. of locking points 2
  • Bolt style - Vertical Pullman Latches
  • Durability - 200,000 cycles
  • Max door height 2440mm
  • Max door mass Up to 200kg
  • Handing Universal
  • Finish - Silver

Testing and certification

  • UKCA / CE marked - Yes
  • Certified in compliance with EN 1125
  • Suitable for fire doors Timber FD30/FD60/FD90/FD120 & Metal FD120/FD240

Furniture Type

  • 402 - Standard touch bar panic latch to suit 692 to 900mm door widths
  • 403 - Wide touch bar panic latch to suit 872 to 1200mm door widths
£192.00

FAQs

  • In stock single doors: The cylinder and key set is found in the top of the frame.
  • Double doors: The cylinder is placed in one of the handle boxes.
  • Fire exits: The keys are taped to the door or around the panic bar.

All our frames come supplied with side channels that are fitted around the outside of the frame. The side channels expand by winding out the fixing bolts which in turn push the side channels outwards allowing you to expand the frame between the two measurements.

All our doors are designed to open outwards which makes them more secure and weather-proof. If you require the door to open inwards you are required to install the frame the opposite way, this does have an effect on the security and weather-proof aspect of the door. We would recommend adding a rain drip to any inward opening doors being installed externally helping to prevent water ingress.

A blanking plate is a sheet of steel used to cover the handle fixing locations that are pre-cut into our multi-point locking door blades. These are only necessary if you don’t require a lever handle to be fitted, we offer these with or without key access.

  • For stock items: The lead time is 1-2 working days for dispatch.
  • Customised orders: Generally between 2 to 3 weeks.
  • Powder coated orders: Generally around 3 weeks.
  • Orders with infill panels: Could take up to 4 weeks.

Once the order is dispatched deliveries are normally the next working day between 08:00 and 17:30.

We do offer collections; this is currently not available online. You would need to contact the office at 01260 460 310 or send an email to [email protected] with your requirements so we can forward a pro forma.
