Exidor 703B/30S - 3 Point Panic Bar


From

£492.00 As Standard

Delivery starting @ £12.00

Lead Time: 1-3 Working Days

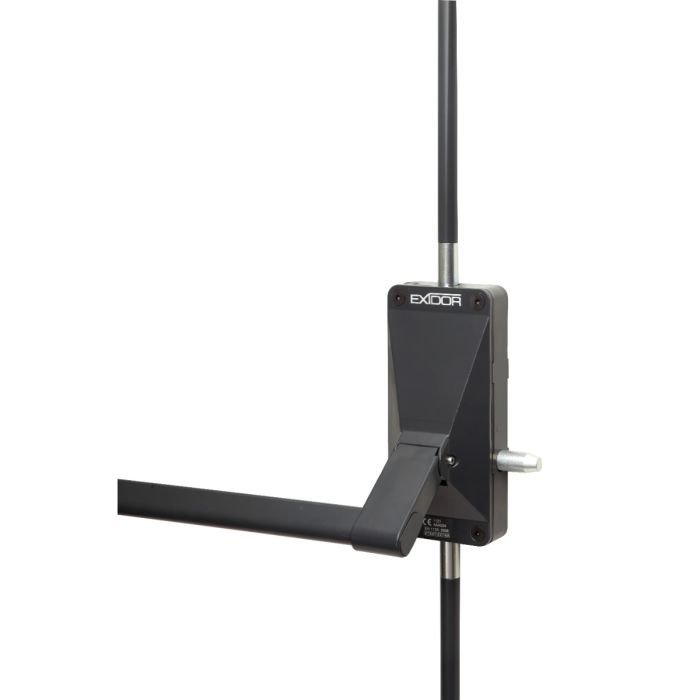

The Exidor 703B/30 is a high security surface mounted three point panic bolt for outward opening single door applications. Incorporated as standard is an automatic top trip mechanism. The unit is operated by a forward thrust of the crossbar to give a speedy exit in panic situations. The main body is constructed from a mixture of steel and stainless steel, with steel being used for the internal components and bolts. There is also an anti-thrust mechanism in the bottom bolt and the latch bolt making it suitable for use in high security applications.

Features and Benefits

  • Three point locking with adjustable top/bottom shoot bolts and central shoot bolt
  • Push bar design easily cut to size to suit different door widths
  • Can work in conjunction with Exidor 710EC - external lever handle (available through our website)
  • Anti-thrust bottom bolt to prevent physical attack
  • Supplied with timber or steel door keeps and fixings
  • Ideal where greater intruder resistance is required

Specification

  • Activation - Push bar
  • Door type -
    • Single doorset
  • Projection - 133mm from door face
  • No. of locking points 3
  • Bolt style - Adjustable shoot bolts and central shoot bolt
  • Durability - 200,000 cycles
  • Max door width 1220mm, bar can be cut to size
  • Max door height 2440mm
  • Max door mass Up to 200kg
  • Handing - Universal
  • Finish - RAL 7016

Testing and certification

  • UKCA / CE marked - Yes
  • Certified in compliance with EN 1125
  • Suitable for fire doors Timber FD30/FD60 & Metal FD120/FD240
  • Certifire approval - Yes
  • Manufacturers guarantee - 10 Years
  • Tested & approved to LPS1175 Level 6 (Burglary Resistance test)
£492.00

FAQs

  • In stock single doors: The cylinder and key set is found in the top of the frame.
  • Double doors: The cylinder is placed in one of the handle boxes.
  • Fire exits: The keys are taped to the door or around the panic bar.

All our frames come supplied with side channels that are fitted around the outside of the frame. The side channels expand by winding out the fixing bolts which in turn push the side channels outwards allowing you to expand the frame between the two measurements.

All our doors are designed to open outwards which makes them more secure and weather-proof. If you require the door to open inwards you are required to install the frame the opposite way, this does have an effect on the security and weather-proof aspect of the door. We would recommend adding a rain drip to any inward opening doors being installed externally helping to prevent water ingress.

A blanking plate is a sheet of steel used to cover the handle fixing locations that are pre-cut into our multi-point locking door blades. These are only necessary if you don’t require a lever handle to be fitted, we offer these with or without key access.

  • For stock items: The lead time is 1-2 working days for dispatch.
  • Customised orders: Generally between 2 to 3 weeks.
  • Powder coated orders: Generally around 3 weeks.
  • Orders with infill panels: Could take up to 4 weeks.

Once the order is dispatched deliveries are normally the next working day between 08:00 and 17:30.

We do offer collections; this is currently not available online. You would need to contact the office at 01260 460 310 or send an email to [email protected] with your requirements so we can forward a pro forma.
