Exidor 742BD/30 - Double Door Set


From

£1,230.00 As Standard

Delivery starting @ £12.00

Lead Time: 1-3 Working Days

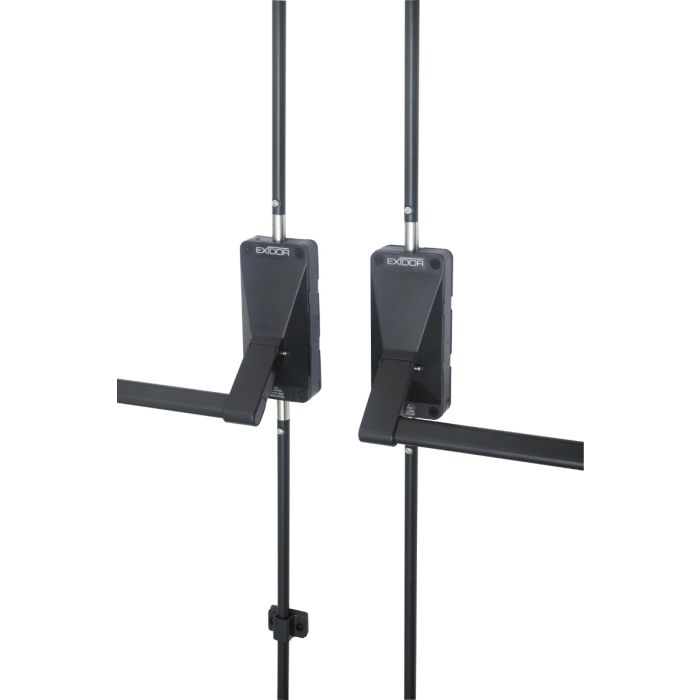

The Exidor 742BD/30 for rebated double doors is a high security complete package offering secure four point locking and incorporates the new horizontal locking mechanism. This allows the unit to be certified to EN1125:2008 and it is suitable for rebated double door applications where security is a consideration.

The main body is constructed from a mixture of steel and stainless steel with steel being used for the internal components and bolts. There is also an anti-thrust mechanism in the horizontal bolts, increasing the products resistance to attack.

Features and Benefits

  • Combines a unit with 2 horizontal shoot bolts and 702B/30 into a single set
    suitable for rebated double doors
  • Push bar design easily cut to size to suit different door widths
  • Can work in conjunction with Exidor 710EC - external lever handle (available through our website)
  • Anti-thrust bottom bolt to prevent physical attack
  • Supplied with timber or steel door keeps and fixings
  • Ideal where greater intruder resistance is required

Specification

  • Activation - Push bar
  • Door type -
    • Rebated double doorset – 2 horizontal shoot bolt unit on active leaf, bolt unit on inactive leaf
  • Projection - 133mm from door face
  • No. of locking points 4
  • Bolt style - Horizontal shoot bolts and adjustable top/bottom shoot bolts
  • Durability - 200,000 cycles
  • Max door width 1220mm, bar can be cut to size
  • Max door height 2440mm
  • Max door mass Up to 200kg
  • Handing - Universal
  • Finish - RAL 7016

Testing and certification

  • UKCA / CE marked - Yes
  • Certified in compliance with EN 1125
  • Suitable for fire doors Timber FD30/FD60 & Metal FD120/FD240
  • Certifire approval - No
  • Manufacturers guarantee - 10 Years
£1,230.00
main product photo

FAQs

  • In stock single doors: The cylinder and key set is found in the top of the frame.
  • Double doors: The cylinder is placed in one of the handle boxes.
  • Fire exits: The keys are taped to the door or around the panic bar.

All our frames come supplied with side channels that are fitted around the outside of the frame. The side channels expand by winding out the fixing bolts which in turn push the side channels outwards allowing you to expand the frame between the two measurements.

All our doors are designed to open outwards which makes them more secure and weather-proof. If you require the door to open inwards you are required to install the frame the opposite way, this does have an effect on the security and weather-proof aspect of the door. We would recommend adding a rain drip to any inward opening doors being installed externally helping to prevent water ingress.

A blanking plate is a sheet of steel used to cover the handle fixing locations that are pre-cut into our multi-point locking door blades. These are only necessary if you don’t require a lever handle to be fitted, we offer these with or without key access.

  • For stock items: The lead time is 1-2 working days for dispatch.
  • Customised orders: Generally between 2 to 3 weeks.
  • Powder coated orders: Generally around 3 weeks.
  • Orders with infill panels: Could take up to 4 weeks.

Once the order is dispatched deliveries are normally the next working day between 08:00 and 17:30.

We do offer collections; this is currently not available online. You would need to contact the office at 01260 460 310 or send an email to [email protected] with your requirements so we can forward a pro forma.
