Friction Door Limiting Stay


£30.00 As Standard

Delivery starting @ £12.00

Lead Time: 1-2 Working Days


  • Heavy duty, surface fixing, friction door stay, will restrict opening angle to approximately 90°
  • Made from steel, zinc plated and powder coated grey for great corrosion resistance, suitable for both internal and external use
  • Friction can be easily adjusted by rotating hexagonal bolt with spanner
  • Suitable for timber and steel doors
  • Fixings not included

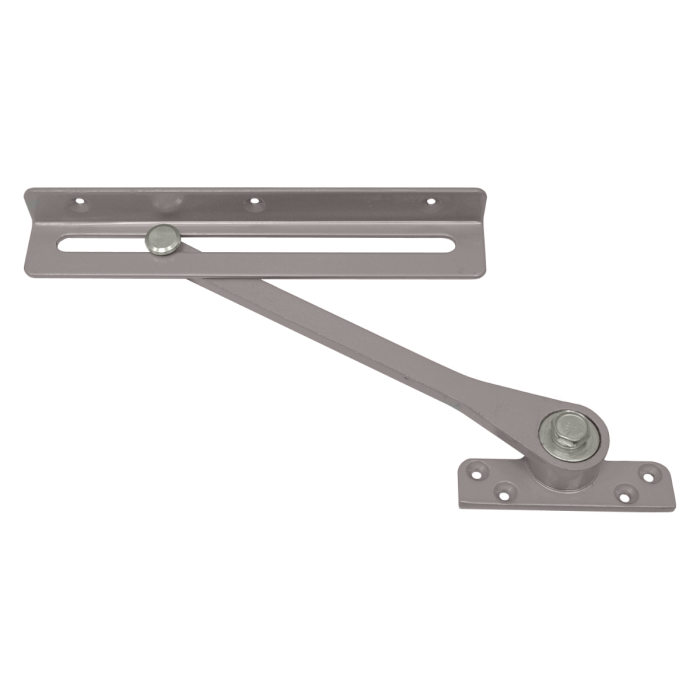

The Z105-Z is a heavy pattern surface fixing friction door stay manufactured from steel and zinc plated before
being powder coated grey, which makes them suitable for external use. To adjust the friction, tighten or loosen
hexagonal bolt on the friction box using a spanner. 65mm spacing from the hinge axis will give an opening angle of
approximately 90°. Decrease this dimension for greater angles (e.g. 95-100°) or increase the dimension for
restricting the door to approximately 80-85°. Since it is a surface fixing product, this door stay is suitable for
use on both timber and steel doors.

Both Z105-Z and Z105ST have been successfully tested to Grade 4 (240 hours neutral salt spray exposure)
in accordance with BS EN 1670:2007 Building Hardware - Corrosion Resistance.


Should you have any questions please feel free to call our sales team on 01260 295996 and they will be more than happy to help you.




All our cylinders for single doors are stored in the top of the door frame in a white fabric bag. For double doors the cylinder and key set can be found in one of the boxes of handles supplied.

All our frames come supplied with side channels that are fitted around the outside of the frame. The side channels expand by winding out the fixing bolts which in turn push the side channels outwards allowing you to expand the frame between the two measurements.

All our doors are designed to open outwards which makes them more secure and weather-proof. If you require the door to open inwards you are required to install the frame the opposite way, this does have an effect on the security and weather-proof aspect of the door. We would recommend adding a rain drip to any inward opening doors being installed externally helping to prevent water ingress.

A blanking plate is a sheet of steel used to cover the handle fixing locations that are pre-cut into our multi-point locking door blades. These are only necessary if you don’t require a lever handle to be fitted, we offer these with or without key access.

Stock items are normally dispatched within 5 working days.

None stock custom orders including fire exits are normally dispatched within 4 to 5 weeks

Powder coated orders are normally dispatched within 5 to 6 weeks.

Orders are normally delivered within 24 to 48 hours upon being dispatched and are normally delivered between Monday and Friday between the hours of 09:00 and 17:00.

We do offer collections, this is currently not available online. You would need to contact the office on 01260 295 996 or send an email to [email protected] with your requirements so we can forward a pro forma.
