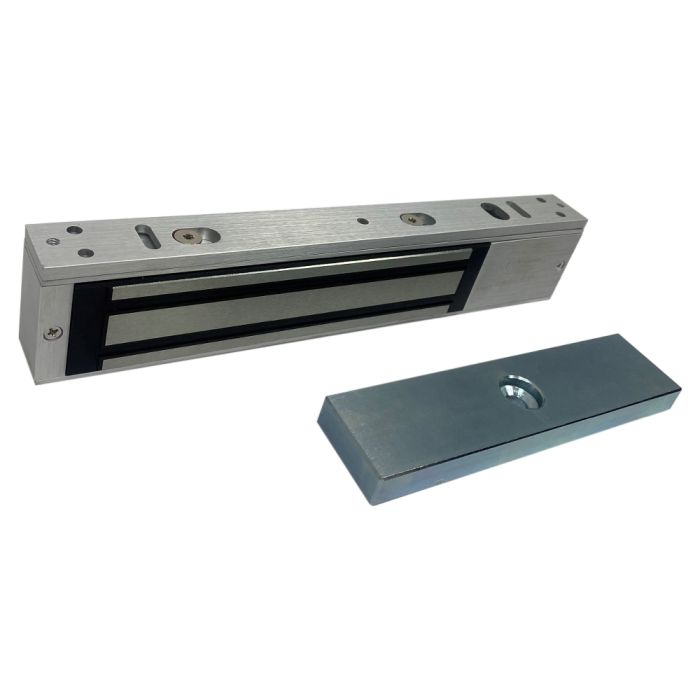

Mag Lock 261-000

Adams Rite Door Magnet Single Non-Monitored


£108.00 As Standard

Delivery starting @ £12.00

Lead Time: 1-2 Working Days

Direct pull magnet with a 250kg holding force, durable, low maintenance and in a compact case with clean aesthetics.

Features and Benefits

  • Security pin feature helps prevent unauthorised removal of the magnet
  • Ideal for use with narrow doors
  • Flexible solutions where space is limited due to other door hardware, pull/puch arms or automatic safety devices
  • Outward and inward opening door variants
  • Surface mounted
  • Built in voltage spike suppressor


  • Holding force - 250kg (551 lbs)
  • Use - Interior & Exterior use
  • Operational temperature: -20 to +60 degrees
  • Positioning
    • Outward opening - Surface mounted to door frame header
    • Inward opening - Door frame header using L & Z brackets
  • Current draw - 480mA @ 12V DC, 240mA @ 24V DC
    • Built in voltage spike suppressor
  • Voltage tolerance - 12 or 24V DC (±15%) selectable
  • Dimensions (H x W x D) magnet - 25 x 250 x 42mm
  • Dimensions (H x W x D) armature - 11.3 x 160 x 36mm
  • Latch - Maximum 3mm door gap
  • Finish - SAA

Testing and certification

  • UKCA / CE marked - Yes
  • Certified in compliance with EN 1634-1, EN 61000-6-, EN 61000-6-3
  • Suitable for fire doors Timber FD30 (261 only)
  • Manufacturers guarantee - 3 Years



All our cylinders for single doors are stored in the top of the door frame in a white fabric bag. For double doors the cylinder and key set can be found in one of the boxes of handles supplied.

All our frames come supplied with side channels that are fitted around the outside of the frame. The side channels expand by winding out the fixing bolts which in turn push the side channels outwards allowing you to expand the frame between the two measurements.

All our doors are designed to open outwards which makes them more secure and weather-proof. If you require the door to open inwards you are required to install the frame the opposite way, this does have an effect on the security and weather-proof aspect of the door. We would recommend adding a rain drip to any inward opening doors being installed externally helping to prevent water ingress.

A blanking plate is a sheet of steel used to cover the handle fixing locations that are pre-cut into our multi-point locking door blades. These are only necessary if you don’t require a lever handle to be fitted, we offer these with or without key access.

Stock items are normally dispatched within 5 working days.

None stock custom orders including fire exits are normally dispatched within 4 to 5 weeks

Powder coated orders are normally dispatched within 5 to 6 weeks.

Orders are normally delivered within 24 to 48 hours upon being dispatched and are normally delivered between Monday and Friday between the hours of 09:00 and 17:00.

We do offer collections, this is currently not available online. You would need to contact the office on 01260 295 996 or send an email to [email protected] with your requirements so we can forward a pro forma.
