LOPRO 2222


From

£114.00 As Standard

Delivery starting @ £12.00

Lead Time: 2-3 Working Days

The LoPro frame is easy to install and uses 44mm Sheet metal screws that pass through the cut-out and fasten to the opposite side of the vision frame. This eliminates the need to drill the door saving time on installation and also leaves the outside of the frame free of fasteners for added security and cleaner appearance.

Specification
Steel Galvanized Frame Grey primed – FRAME ONLY

Door Thickness
Suited for a 44-46mm metal or timer door.

Frame Details

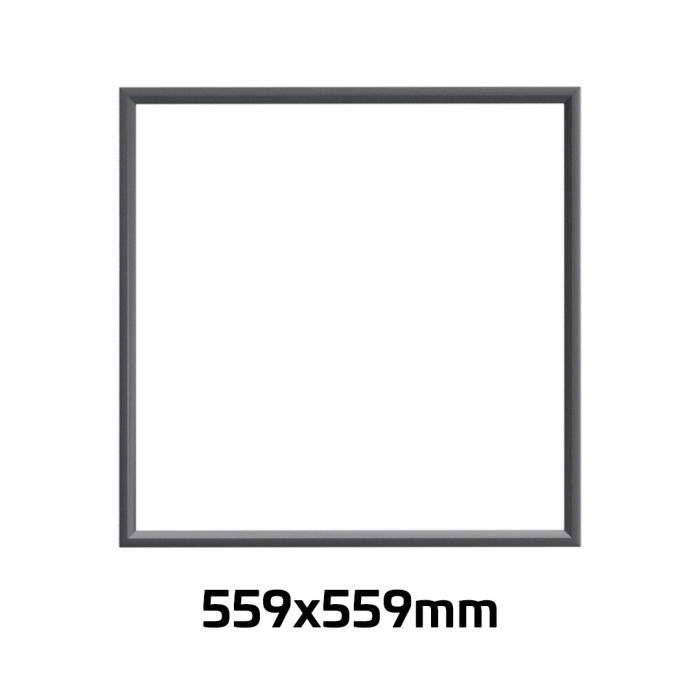

Cut Size Required - 559 x 559mm (W x H)

Clear Vision - 508 x 508mm (W x H)

Glass Size Required - 532 x 532mm (W x H)

Glass Thickness
6mm as standard. Glass pocket of 10mm allows for glazing tape or compound to be used on one or both sides of the glass.

Aesthetics
Tight mitred corners, bevelled glass stop and low profile, provide a clean tapered look, concealed fixing one side only.
£114.00

FAQs

  • In stock single doors: The cylinder and key set is found in the top of the frame.
  • Double doors: The cylinder is placed in one of the handle boxes.
  • Fire exits: The keys are taped to the door or around the panic bar.

All our frames come supplied with side channels that are fitted around the outside of the frame. The side channels expand by winding out the fixing bolts which in turn push the side channels outwards allowing you to expand the frame between the two measurements.

All our doors are designed to open outwards which makes them more secure and weather-proof. If you require the door to open inwards you are required to install the frame the opposite way, this does have an effect on the security and weather-proof aspect of the door. We would recommend adding a rain drip to any inward opening doors being installed externally helping to prevent water ingress.

A blanking plate is a sheet of steel used to cover the handle fixing locations that are pre-cut into our multi-point locking door blades. These are only necessary if you don’t require a lever handle to be fitted, we offer these with or without key access.

  • For stock items: The lead time is 1-2 working days for dispatch.
  • Customised orders: Generally between 2 to 3 weeks.
  • Powder coated orders: Generally around 3 weeks.
  • Orders with infill panels: Could take up to 4 weeks.

Once the order is dispatched deliveries are normally the next working day between 08:00 and 17:30.

We do offer collections; this is currently not available online. You would need to contact the office at 01260 460 310 or send an email to [email protected] with your requirements so we can forward a pro forma.
